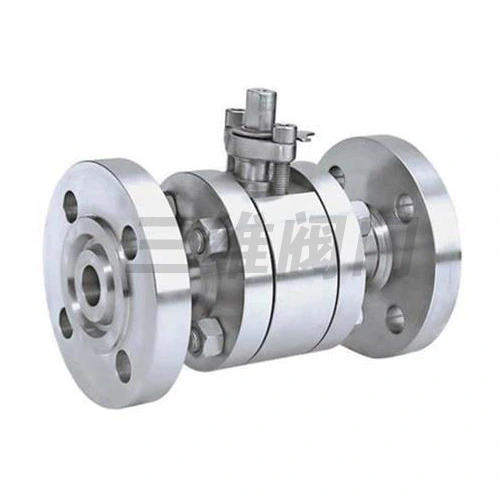

三维公司生产销售的浮动式锻钢球阀Q(3、6、7、8、9)4（6）1F(Y、N、P)的主要特点是本身结构紧凑，密封可靠，结构简单，维修方便，密封面与球面常在闭合状态，不易被介质冲蚀，易于操作和维修，适用于水、溶剂、酸和天然气等一般工作介质，而且还适用于工作条件恶劣的介质，如氧气、过氧化氢、甲烷和乙烯等，在各行业得到广泛的应用。球阀阀体可以是整体的，也可以是组合式的。
技术规范
| 设计标准Design Standard | GB/T12237 | API608 |
| 结构长度Face to Face | GB/T12221 | ASME16.10 |
| 法兰尺寸 Flanged Size | GB/T9113 JB/T79 | ASME16.5 |
| 检查与实验Test＆Inspection | JB/T9092 | API598 |
| 注：系列阀门连接法兰及对焊端尺寸可根据用户要求设计制造。 | ||
主要零件材质
| 序号 | 零件名称 | 材质 | |
| GB | ASTM | ||
| 1 | 侧阀体 | WCB | A216-WCB |
| 2 | 螺母 | 35 | A194-2H |
| 3 | 垫片 | 柔性石墨+不锈钢 | 柔性石墨+不锈钢 |
| 4 | 螺柱 | 35CrMoA | A193-B7 |
| 5 | 阀体 | WCB | A216-WCB |
| 6 | 阀座 | PTFE | PTFE |
| 7 | 球体 | 25+ENP | A105 + ENP |
| 8 | 阀杆 | 1Cr13 | A182-F6a |
| 9 | 垫片 | PTFE | PTFE |
| 10 | 填料 | 柔性石墨 | 柔性石墨 |
| 11 | 填料压盖 | WCB | A216-WCB |
| 12 | 螺钉 | 35 | A194-2H |
| 13 | 定位片 | Q235A | 碳钢 |
| 14 | 挡圈 | 65Mn | AISI 1566 |
| 15 | 手柄 | KT330-08 | A47-667 235 10 |
尺寸及重量 PN1.6MPa CLASS 150 10K(JIS)
PN1.6MPa CLASS 150 10K(JIS) 浮动式锻钢球阀
| DN | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 |
| NPS | in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 |
| 150LB法兰 | L | 108 | 117 | 127 | – | 165 | 178 | 190 | 203 | 229 | 356 | 394 | 457 | – |
| 1.6MPa法兰 | L | 130 | 140 | 150 | 165 | 180 | 200 | 200 | 250 | 280 | 320 | 360 | 400 | – |
| 10K(JIS)法兰 | L | 108 | 117 | 127 | – | 165 | 178 | 190 | 203 | 229 | 365 | 394 | 457 | 533 |
| 对焊 | L1 | 140 | 152 | 165 | – | 190 | 216 | 241 | 282 | 305 | 381 | 403 | 419 | – |
| 手动 | H | 73 | 78 | 86 | – | 102 | 130 | 142 | 191 | 200 | 226 | 242 | 285 | – |
| W | 130 | 130 | 160 | – | 180 | 230 | 400 | 400 | 460 | 750 | 750 | 900 | – | |
| Kg | 3 | 4 | 6 | – | 12 | 15 | 19 | 22 | 46 | 65 | 85 | 127 | – | |
| 涡轮蜗杆传动 | H | – | – | – | – | – | – | – | – | – | – | 260 | 300 | – |
| W | – | – | – | – | – | – | – | – | – | – | 400 | 600 | – | |
| 型号 | – | – | – | – | – | – | – | – | – | – | A | B | – | |
| Kg | – | – | – | – | – | – | – | – | – | – | 110 | 175 | – | |
| 气动 | H | 203 | 234 | 242 | – | 326 | 354 | 366 | 415 | 485 | 607 | 623 | 742 | – |
| H1 | 125 | 139 | 147 | – | 195 | 223 | 235 | 284 | 328 | 398 | 414 | 498 | – | |
| L1 | 326 | 326 | 347 | – | 420 | 426 | 426 | 590 | 523 | 610 | 610 | 885 | – | |
| L2 | 136 | 136 | 181 | – | 181 | 257 | 257 | 257 | 287 | 378 | 378 | 530 | – | |
| 型号 | AG06 | AG09 | AG09 | – | AG13 | AG13 | AG13 | AG13 | AW13 | AW17 | AW17 | AW20 | – | |
| Kg | 6.1 | 6.3 | 8.1 | – | 14.1 | 16.6 | 38.0 | 42.1 | 53.0 | 93.5 | 105.2 | 207.8 | – | |
| 电动 | H | – | – | – | – | – | 432 | 443 | 454 | 493 | 574 | 646 | 678 | – |
| H1 | – | – | – | – | – | 337 | 348 | 359 | 398 | 424 | 496 | 528 | – | |
| W | – | – | – | – | – | 190 | 190 | 190 | 190 | 400 | 400 | 400 | – | |
| 型号 | – | – | – | – | – | Q60-1 | Q60-1 | Q60-1 | Q60-1 | Q120-1 | Q120-1 | Q120-1 | – | |
| Kg | – | – | – | – | – | 23 | 25 | 60 | 75 | 97 | 162 | 226 | – |
浮动式锻钢球阀 Q(3、6、7、8、9)4（6）1F(Y、N、P)
浮动式锻钢球阀 Q(3、6、7、8、9)4（6）1F(Y、N、P)
浮动式锻钢球阀 尺寸及重量 PN2.5MPa 4.0MPa CLASS300 20K(JIS)S)
| DN | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 |
| NPS | in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 |
| 300LB法兰 | L | 140 | 152 | 165 | – | 190 | 216 | 241 | 282 | 305 | 381 | 403 | 502 | – |
| 2.5MPa法兰 | L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 320 | 400 | 400 | 550 | – |
| 4.0MPa法兰 | L | 130 | 140 | 150 | 180 | 200 | 220 | 250 | 280 | 320 | 400 | 400 | 550 | – |
| 20K(JIS)法兰 | L | 140 | 152 | 165 | – | 190 | 216 | 241 | 283 | 305 | 381 | 403 | 502 | 568 |
| 对焊 | L1 | 140 | 152 | 165 | – | 190 | 216 | 241 | 282 | 305 | 381 | 403 | 502 | – |
| 手动 | H | 73 | 80 | 86 | – | 102 | 136 | 164 | 191 | 223 | 240 | 253 | 307 | – |
| W | 140 | 140 | 180 | – | 230 | 240 | 400 | 400 | 750 | 750 | 900 | 1000 | – | |
| Kg | 4 | 6 | 6.8 | – | 11.2 | 18.3 | 32 | 38 | 78 | 85 | 102 | 125 | – | |
| 涡轮蜗杆传动 | H | – | – | – | – | – | – | – | – | – | – | 325 | 387 | – |
| W | – | – | – | – | – | – | – | – | – | – | 400 | 600 | – | |
| 型号 | – | – | – | – | – | – | – | – | – | – | A | B | – | |
| Kg | – | – | – | – | – | – | – | – | – | – | 148 | 196 | – | |
| 气动 | H | 204 | 236 | 242 | – | 326 | 359 | 388 | 415 | 508 | 621 | 675 | 824 | – |
| H1 | 126 | 141 | 147 | – | 195 | 228 | 257 | 284 | 351 | 412 | 466 | 580 | – | |
| L1 | 326 | 326 | 347 | – | 420 | 426 | 426 | 590 | 523 | 610 | 610 | 885 | – | |
| L2 | 136 | 136 | 181 | – | 181 | 257 | 257 | 257 | 287 | 378 | 378 | 530 | – | |
| 型号 | AG06 | AG09 | AG09 | – | AG13 | AG13 | AG13 | AG13 | AW13 | AW17 | AW17 | AW20 | – | |
| Kg | 6.2 | 6.4 | 8.5 | – | 16.9 | 20.9 | 42.5 | 52.7 | 77.9 | 107.0 | 130 | 220 | – | |
| 电动 | H | 432 | 443 | 454 | 493 | 574 | 646 | 678 | – | |||||
| H1 | 337 | 348 | 395 | 398 | 424 | 496 | 528 | – | ||||||
| W | 190 | 190 | 190 | 190 | 400 | 400 | 400 | – | ||||||
| 型号 | Q60-1 | Q60-1 | Q60-1 | Q60-1 | Q120-1 | Q120-1 | Q120-1 | – | ||||||
| Kg | 23 | 35 | 60 | 75 | 100 | 170 | 245 | – |
浮动式锻钢球阀 Q(3、6、7、8、9)4（6）1F(Y、N、P)
浮动式锻钢球阀 Q(3、6、7、8、9)4（6）1F(Y、N、P)
尺寸及重量 PN2.5MPa 4.0MPa CLASS300 20K(JIS)
| DN | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| NPS | in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 |
| 400LB法兰 | L | 165 | 190 | 216 | – | 241 | 292 | 330 | 356 | 406(432) | – | – | – |
| 6.4MPa法兰 | L | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 |
| 10.0MPa法兰 | L | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 |
| 对焊 | L1 | 165 | 190 | 216 | – | 241 | 292 | 330 | 356 | 406(432) | – | – | – |
| 手动 | H | 73 | 80 | 86 | – | 110 | 142 | 171 | 185 | 220 | – | – | – |
| W | 160 | 160 | 230 | – | 400 | 400 | 650 | 650 | 800 | – | – | – | |
| Kg | 4.5 | 6.2 | 7.5 | – | 12.5 | 26.1 | 38 | 44 | 65 | – | – | – | |
| 涡轮蜗杆传动 | H | – | – | – | – | – | – | – | 182 | 217 | – | – | – |
| W | – | – | – | – | – | – | – | 280 | 400 | – | – | – | |
| 型号 | – | – | – | – | – | – | – | O | A | – | – | – | |
| Kg | – | – | – | – | – | – | – | 50 | 95 | – | – | – | |
| 气动 | H | 229 | 236 | 242 | – | 266 | 366 | 395 | 470 | 601 | – | – | – |
| H1 | 134 | 141 | 147 | – | 171 | 235 | 264 | 313 | 392 | – | – | – | |
| L1 | 283 | 283 | 283 | – | 350 | 590 | 590 | 523 | 610 | – | – | – | |
| L2 | 136 | 181 | 181 | – | 181 | 257 | 257 | 287 | 378 | – | – | – | |
| 型号 | AG09 | AG09 | AG09 | AG09 | AG13 | AG13 | AG13 | AW17 | – | – | – | ||
| Kg | 6.5 | 6.8 | 9.3 | – | 17.8 | 33.6 | 45.1 | 55.3 | 81.3 | – | – | – | |
| 电动 | H | – | – | – | – | – | 500 | 520 | 545 | 558 | — | – | – |
| H1 | – | – | – | – | – | 350 | 370 | 395 | 408 | – | – | – | |
| W | – | – | – | – | – | 190 | 1900 | 190 | 190 | – | – | – | |
| 型号 | – | – | – | – | – | Q120-1 | Q120-1 | Q120-1 | Q120-1 | – | – | – | |
| Kg | – | – | – | – | – | 26 | 41 | 72 | 92 | – | – | – |
( )内PN10.0MPa、 Class600尺寸
